Construction and Stone Quarry cutting Machinery

Macchina per la realizzazione di volte a stella, a botte e cornici

Construction of “Volte a stella”, barrel archway and cornices machines

The machine has 3 settings, detailed as follows:

1) the first setting is provided with milling helical cutter with a diameter up to 5-6 mm, tilt in degrees, for the realization of the ribs of ashlars and, providing proper knives, for the realization of the frames;

2) the second setting is provided with diamond blade tiltable with 800 mm diameter for the cutting of the blocks in degrees;

3) the third setting is provided with helical cutter of 800 mm tiltable for the camber of ashlars use closing time.

Macchina Rifinitrice e Intestatrice a ciclo continuo con vasca per il riciclo

Finishing machine and end milling machine in a continuous cycle with a separate recycling for cutting slices quarry stone

Finishing machine of stone cladding and floors for use, equipped with 9 diamond blades ; indicated for desert areas and/or burdened by drought.

Macchina Scorniciatrice combinata inclinabile

Combined  Moulder Tilting machine

To use for crowning the “Volte a stella”.

The machine has 2 settings, detailed as follows:

1) the first setting is provided with diamond blade tiltable with 800 mm diameter for the cutting of the blocks in degrees;

2) the second setting is provided with milling cutter with a diameter up to 5-6 mm, tilt in degrees, for the realization of the ribs of ashlars and, providing proper knives, for the realization of the shapers.

Macchina inclinabile non da cantiere

Tilt cutter machine

Splitting machine to use cutting-degree stone (pietra leccese, carparo, marzaro, tuffs, poroton) and artifacts.

The machine is provided with diamond blade tiltable with 800 mm diameter for the cutting of the blocks in degrees.

We carry the same machine version also not construction.

On request the machine can be equipped with rack for advancing the cart and can be either single-phase or three-phase.

Macchina Spaccatrice Tagliablocchi

Splitting cutters machine

Splitting machine for stone blocks cutting, equipped with a diamond blade of 1000 mm diameter (an optional up to 1200 mm) cuts up to 400 mm (an optional up to 500 mm) in height and is driven by cart with feed cogwheel manual or with inverter and sliding in an oil bath.

The machine is equipped with n. 1 20 HP engine.

Macchina Taglierina inclinabile per cantiere

Tilt cutter machine for industry construction

Splitting machine to use cutting-degree stone (pietra leccese, carparo, marzaro, tuffs, poroton) and artifacts.

The machine consists of a setting equipped with a diamond blade tilt with diameter 850 mm (cutting height up to 350 mm) for the cutting of the blocks in degrees.

On request the machine can be equipped with rack for the advancement of the carriage, it can be either single-phase or three-phase or both with modification of the crankcase and can be equipped with a further steel blade with Widia plates for cutting raw antiquated.

Macchina taglierina tipo Cantiere (tipo mini)

Cutter machine for construction industry (small)

Splitting machine for manual cutting stone (pietra leccese, carparo, marzaro, tuffs, poroton) and similars.

The blade can be supplied both diamond and steel plates with Widia.

The rotary axis is driven via a belt.

On request the machine can be equipped with rack for advancing the cart and can be either single-phase or three-phase or both.

Macchina uso centinatura e scorniciatura

Bending machine and Moulder machine

New model of machine with the possibility to provide different diameters of ribs: finally executable in series by machine!

Macchina Centinatrice e Scorniciatrice

Bending and Moulder machine

Machine for bending and moulding simultaneously. Also it can be used as a moulder linear with radius up to m. 3.70.

mulino frantumatore

Grinding Mill

The machine is equipped with 10 HP engine.

Macchina lavorazione colonnine

Round and square balusters processing machine

The machine is operated with hydraulic feed and simultaneously the realization of n. 4 round columns done corresponds the same number of square columns.

Lathe for realization of stone columns

Adjusted lathe for working round and square balusters
Macchina uso lavorazione centine per volte a stella

Stone quarry Shaping Machine with helical Cutter with customized design

This machine is provided with milling cutter with a diameter up to 5-6 mm, tilt in degrees, for the realization of the ribs of ashlars and, providing proper knives, for the realization of the frames.

Macchina Scorniciatrice e Centinatrice per blocchi fino a 80 cm

Reclinable Bending Machine and shapers

The machine consists of a setting equipped with cutter of 800 mm tilt to the crowning of the blocks use closing time and shaping machine.

Ground machines

We repairs, adjustments and brought up to standards of special machinery of any kind (especially on old tufacutter) with the release of "Declaration of Conformity" and "Certification of responsibility" in accordance with the directives

Macchina Cavatufi Combinata tipo medio del 1997

Stone Quarry Cutting Machines

Regenerated Combined stone quarry cutting Machines

Macchine-piegaferri-e-tagliaferro-rettificate

Bar benders and irons size machines

Machinery in production

Macchina bilama per cava

Stone Quarry Cutting Machine with two steel blades

Vertical Cutting machine (during mining in the quarry) of tuffs and stone.

Blades and plates

Dischi diamantati per Carparo e similari

Diamond Blades and Plateaux

Sale and repair diamond blades and plateaux from Ø 350 to Ø 1600 with the possibility of remaking the only Diamond or replacement of one blade.

It also be ordered online in various sizes with home delivery and cash on delivery. Click here for orders.

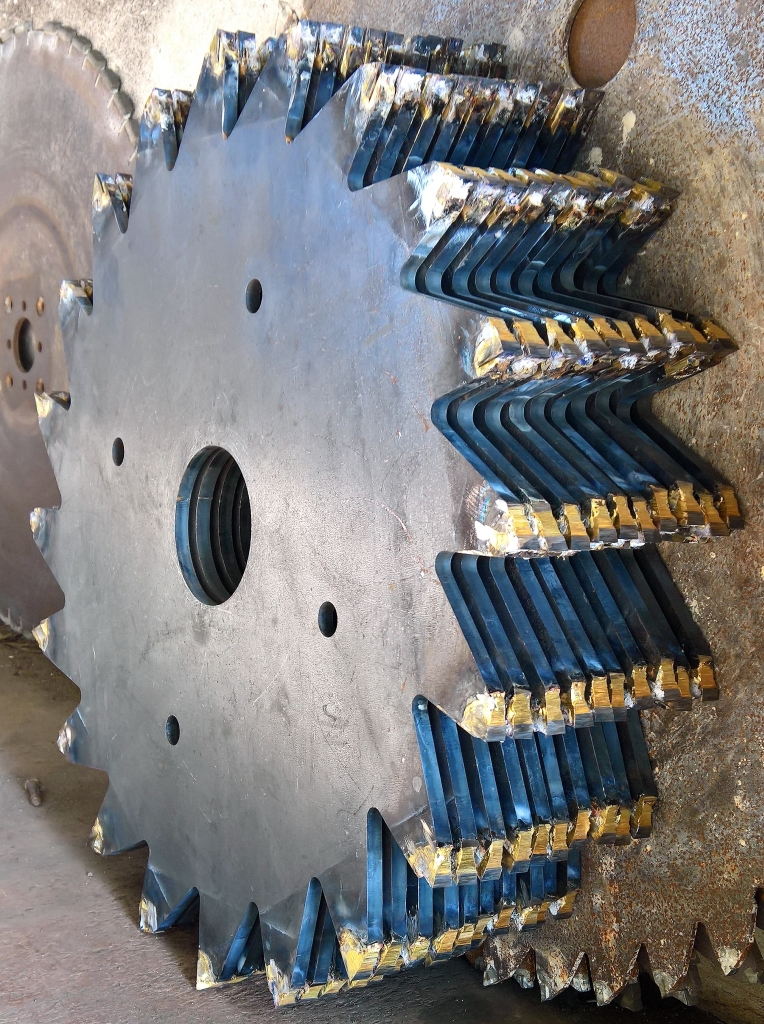

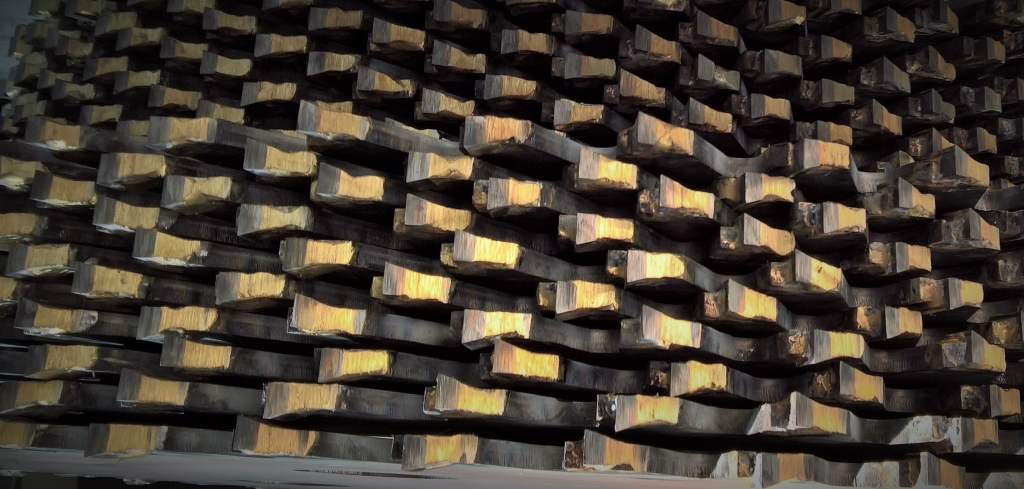

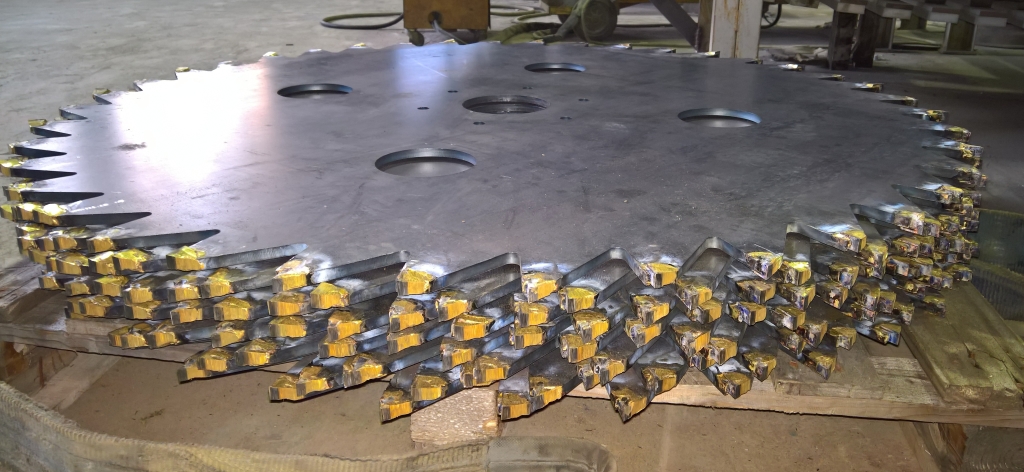

steel blades

Steel blades

Sale and repair steel blades for quarry and construction machinery with option of using plates Widia , Titanium, PCD, ecc.

It also be ordered online in various sizes with home delivery and cash on delivery. Click here for orders.

Placchette C14

Widia plates

The best plates Widia on the market!!!

Special anti-wear; more effective at cutting; Ultra-performing regrinding.

In addition to the dimensions shown in the graph, available C16 (16X10X6) in both standard and special type.

It also be ordered online in various sizes with home delivery and cash on delivery. Click here for orders.

Placchette  PCD

Special plates

Plates specific for stone extraction in quarries very hard.

It also be ordered online in various sizes with home delivery and cash on delivery. Click here for orders.
